VitaroUNO INDUSTRIALLow build-up (≤185 mm)
Balconies, thin stone, tight voids → F Series. Five models, up to 2,200 kg.
View F Series → Download F Series datasheet (PDF)Paver Pedestals
Lay large-format stone and porcelain paving on adjustable supports — no mortar, no bed, no cutting the slab. Vitaro paver pedestals keep terraces dead level and fully re-levelable from 20 mm to 392 mm.
Not sure which series?
Balconies, thin stone, tight voids → F Series. Five models, up to 2,200 kg.
View F Series → Download F Series datasheet (PDF)Standard terraces and podiums → B Series. The versatile all-rounder.
View B Series → Download B Series datasheet (PDF)Podiums, thick slabs, sloped roofs → HE Series. Optional 5° self-leveling head.
View HE Series → Download HE Series datasheet (PDF)

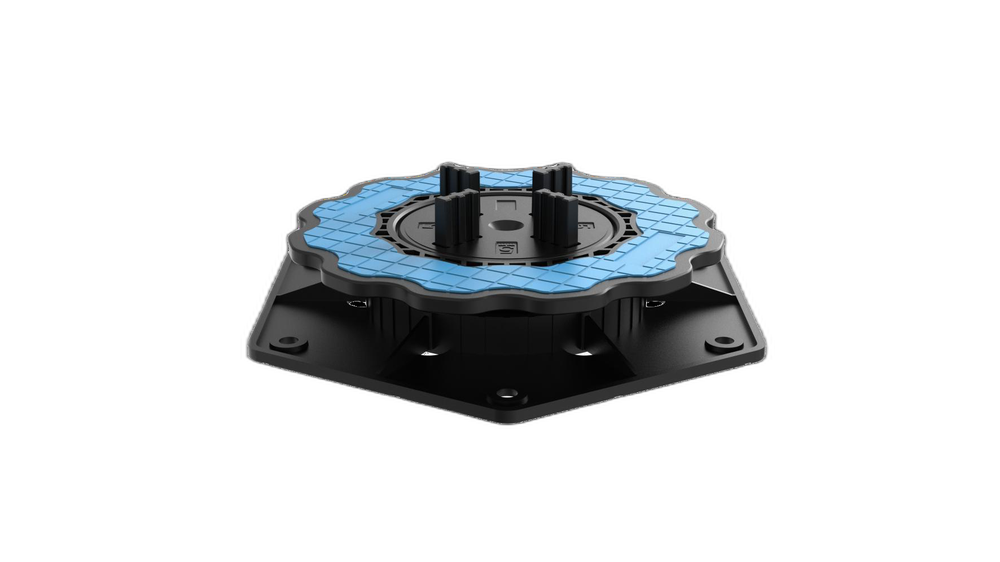

Low build-up · F Series
Compact pedestals for thin stone and porcelain over low voids and balconies. Five models, up to 2,200 kg.
View F Series → Download F Series datasheet (PDF)

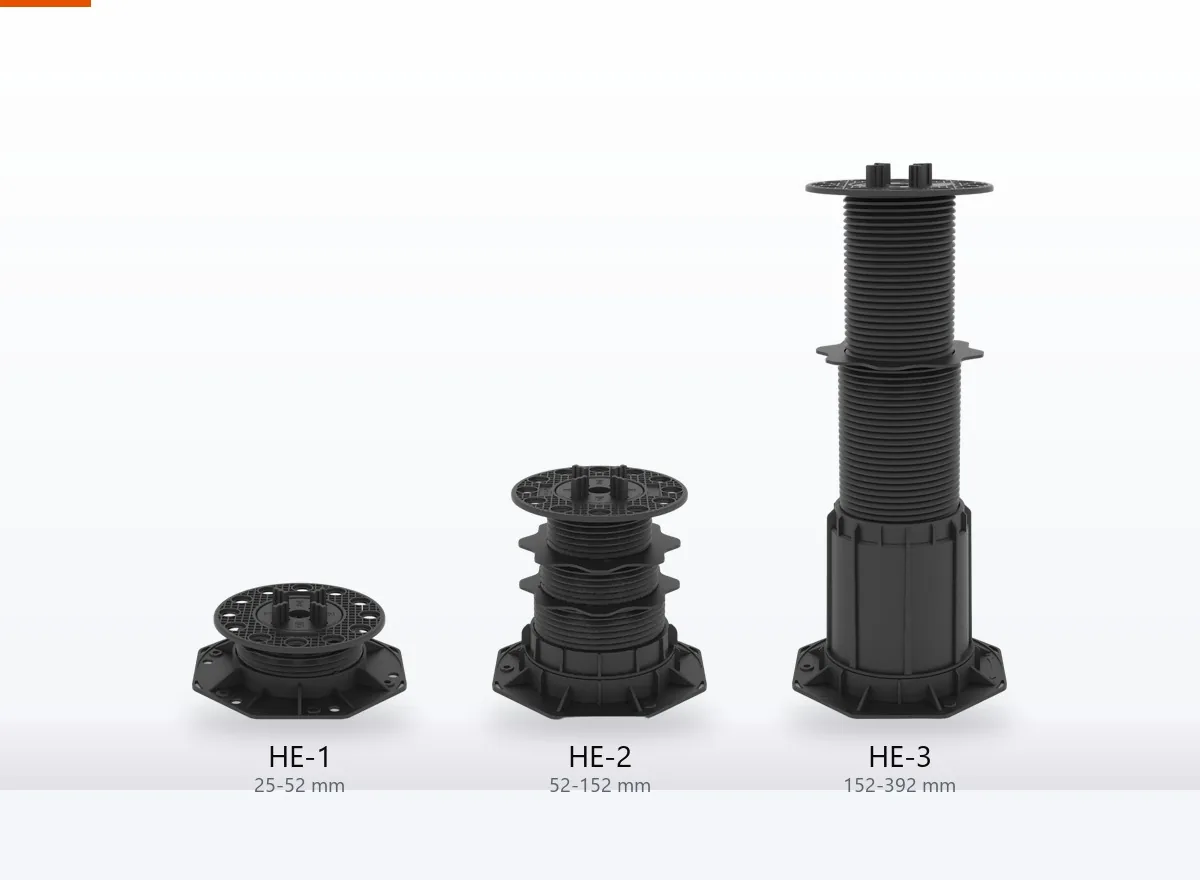

Tall terraces · HE Series
For podium decks and thick slabs. Optional 5° self-leveling head bridges falls without shimming.
View HE Series → Download HE Series datasheet (PDF)Why Vitaro for pavers
Pavers sit on supports, not sand or adhesive — faster install, lighter load, no curing time.
Self-leveling heads cancel slab falls so the whole terrace reads as one flat plane.
Lift a paver, turn the ring, drop it back. Fix settlement without re-laying the area.
Open joints and a raised void let rainwater sheet off and the slab breathe — no ponding.
The void keeps drains, cables and the membrane reachable for inspection and maintenance.
Independently SGS-tested for foot traffic, planters and furniture loads.
| Parameter | F Series | HE Series |
|---|---|---|
| Height range | 20 – 185 mm | 25 – 392 mm |
| Max load | up to 2,200 kg | up to 2,000 kg |
| Best for | Thin stone, balconies, low voids | Podiums, thick slabs, sloped roofs |
| Self-leveling | Optional (5°) | Optional (5°) |
Plan your build
Step-by-step setup: grid spacing, membrane protection, leveling and pedestal count per m².
Read the guide →Budget per m²: pedestals, slabs, freight and what drives the total.
See the cost breakdown →Enter your area and slab size for an exact pedestal count and series pick.
Open the calculator →Real paving
HE Series with self-leveling heads delivered a dead-level 20 mm stone build-up around a pool.
See all projects →
F Series low-profile pedestals supported large-format pavers on a serviceable podium void.
See all projects →Send paving area, slab thickness and target height — we'll recommend the series and quote FOB/CIF.
FAQ
No. Pedestals support the slab on fixed heads — no sand bed, no adhesive, no curing. That's what makes them re-levelable and serviceable.
Yes. Vitaro heads have a large bearing surface sized for thin 20 mm porcelain and stone. Spacing follows the slab's spanning capacity — typically 4–6 pedestals per m² for 60×60 cm tiles.
Usually 4–6 per m² for 600×600 mm pavers, depending on slab thickness and load. Use our paver calculator for an exact count from your area.
Related Guides
Why slope correction plus a protective membrane matters under paver builds.
Read guide →How Vitaro verifies paver-load capacity, with test method and rated values.
Read guide →20mm tile logic, 600 mm spacing grid, joints, wind-uplift clipping and rooftop detailing.
