VitaroUNO INDUSTRIAL
Max load · B Series

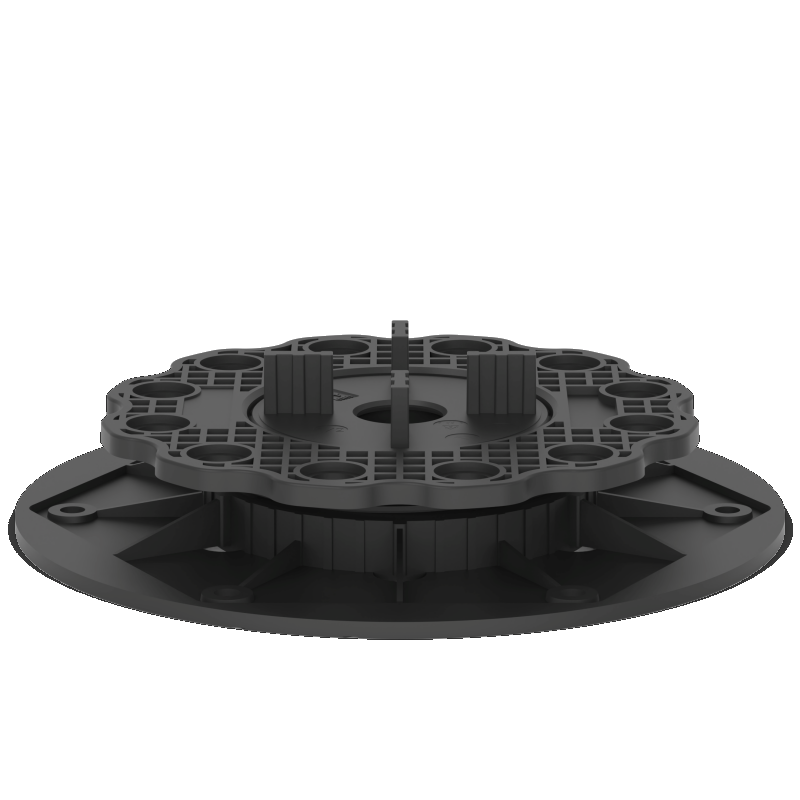

B Series — up to 3,500 kg
The highest load in the range at the best cost. Six models cover 20–260 mm for planters, spas and busy decks.
View B Series →Heavy-Duty Pedestals
When the deck has to carry planters, hot tubs, crowd loads or a podium garden, Vitaro heavy-duty pedestals deliver. The B Series holds up to 3,500 kg per unit; the HE-3 reaches 392 mm for tall structural builds — both independently SGS-tested.
Built for load
B Series peak load — enough for spas, planter boxes and dense foot traffic without over-specifying.
Compression and weather tested independently, so your submittal passes compliance first time.
Octagonal 171.5 mm base spreads load and resists tipping on uneven substrates.
Rigid, creep-resistant body holds its height under sustained load and temperature swing.
HE-3 reaches 392 mm for podium decks and structural terraces where height matters.
Factory-direct supply and OEM/private-label for contractors and resellers.
Max load · B Series
The highest load in the range at the best cost. Six models cover 20–260 mm for planters, spas and busy decks.
View B Series →
Tall load · HE Series
For tall podiums and structural terraces. Self-leveling head bridges falls; extenders reach higher.
View HE Series →| Series / model | Height | Max load | Use |
|---|---|---|---|
| B Series | 20 – 260 mm | up to 3,500 kg | Planters, spas, busy decks |
| HE-1 | 25 – 52 mm | up to 2,000 kg | Low heavy terraces |
| HE-2 | 52 – 152 mm | up to 1,800 kg | Mid-height terraces |
| HE-3 | 152 – 392 mm | up to 1,200 kg | Tall podiums / structures |
Load decreases as height increases; values are indicative. We size exact layouts for your point load and span.
Real heavy loads
B Series carried the joist grid at up to 3,500 kg per unit over a damp substrate.
See all projects →
HE Series gave a stable, adjustable walking surface over graded ground with a service void.
See all projects →Send your point load, span and area — we'll specify pedestals, count and spacing and quote within 24 hours.
